Wall Man
1. Mounting worker safety hooks to prevent falls
2. Easy lever operation
3. Air hoses (including respirator airlines) and other work tools can be loaded
4. Load Capacity 150 kg
5. Lifting speed 60 cm/sec
| Scope of Work |
From the floor, 5-6m from the wall 3-5m |
Load capacity | 150 kg |
|---|---|---|---|
| Air Pressure | Minimum 6 bar | Air consumption | 350ltr/min |
| Change Offset Distance | 250mm | Equipment Weight | ca.280kg |
| Noise | < 85dB(A) | Speed | Lifting ~ 50-60cm.sec Moving ~50m/min |
※Scroll the image left and right.

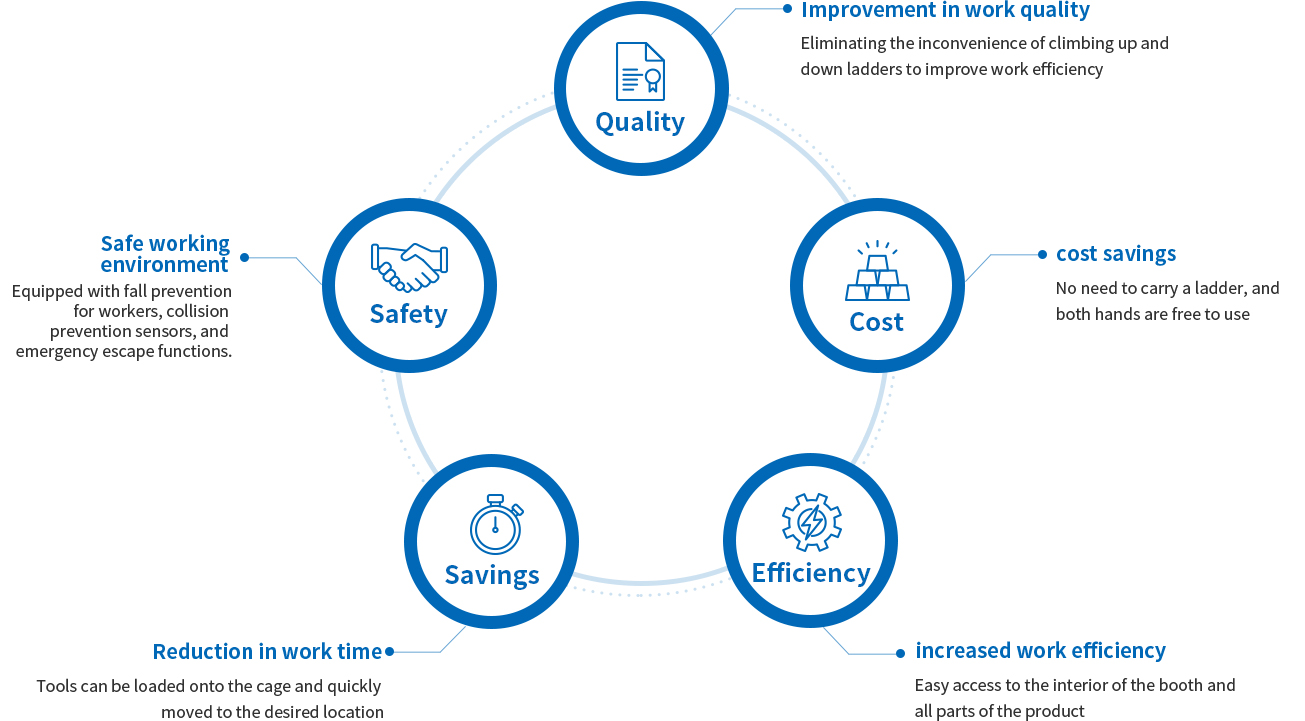

The worker special lift Wall-Man is designed to allow you to move forward/rearward as well as up, down, left
and right with a simple lever operation. This allows workers to freely access the locations they need to
work on a variety of large industrial objects, primarily trains, airplanes, robots, and buses.
※Scroll the image left and right.
Lift Man
1. Move up to 10m from the connection point
2. Operated by compressed air
3. Taking up minimal space
4. Control of the device and provide air from inside the cage
5. Various tasks such as painting, masking, and sanding are possible
| Scope of Work | 10m radius from connection point | Load capacity | 140 kg |
|---|---|---|---|
| manipulation method | remote control panel method | air consumption | 6 - 8 bar |
| equipment weight | 370kg | height | 2,750mm |
| noise | < 80dB(A) | certification | CE, TUV, SAQ, UL, UTD, SZU, NATO, LOLER |
※Scroll the image left and right.
Water type paint have no environment pollution and strong from heat and strong winds. Air jet gun reduce working hours
as providing strong winds and possible to make clean surface treatment because protecting debris in the paint.

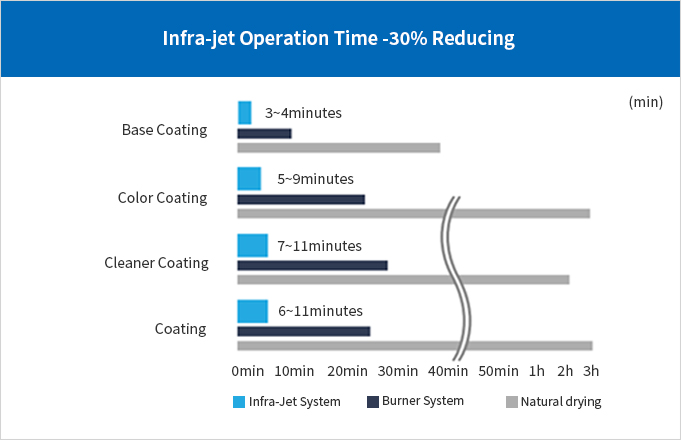

In case of using with infrared light, more satisfactory result will be expected.
Spray-Gun can heat the air up to 40°C. The operator can adjust the temperature using the regulator at the bottom
of the heating system. There are no electrical heating components. The Spray-Gun being fully pneumatic,
nevertheless the gun is ready to work in a very short time. The Spray-Gun grants a paint saving up to 20%.
The temperature considerably improves paint application quality, shortens the drying time of water based paints.
DRY-Gun has been created to allow rapid drying of water based paints favoring the Evaporation of the water contained
in the solvents. The DRY-Gun has been designed for the quick and effective compressed air drying of surfaces coated with
water or solvent based paint. The air volume control produced by the gun is around 6 times its air consumption.
The DRY-Gun is fitted as standard with a ring for precise air volume control.
The ergonomically designed and thermally insulated grip makes it easier for handle and safe during use.
Work Distance 5cm
Work Distance 30cm
Work Distance 40~50cm
A system that recovers waste heat generated during paint coating/drying and reuses it for the painting/coating and drying process
There is no mutual contamination during the exhaust air cross-flow.
Dust, odor, bacteria, and toxic gases contained in the exhaust are not introduced into the supply air.
By designing the inlet and outlet aerodynamically, turbulence is suppressed, ensuring safe and comfortable air conditioning.
The heat exchanger is treated with double folding to maintain high sealing performance.
Aerodynamic design
By designing the inlet and outlet aerodynamically, turbulence is suppressed, resulting in reduced pressure loss.
The structure is designed to minimize dust accumulation, leading to a significant decrease in heat efficiency degradation.
There is no driving mechanism.
There is no wear and tear, and lubrication is not required, resulting in minimal maintenance efforts.
It is free from malfunctions and easy to install.
It features a robust casing that provides durability and protection.
Using aluminum-zinc alloy coated steel plates for casing fabrication provides excellent corrosion resistance.
The structure is both robust and easy to install.

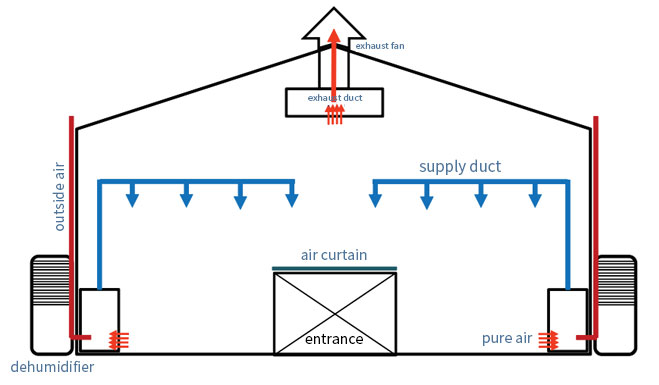

Easy storage and management of temperature- or humidity-sensitive products,
particularly rapid recovery/control of temperature and humidity changes caused by incoming/outgoing external air.
Effective exhaust/control of fine dust, harmful gases, and other pollutants that can occur during storage or indoor operations.
An effective device that maximizes work efficiency not only for precise tasks that require consistent temperature and humidity but also for restoring the indoor environment after work.
By using cooling dehumidifier designed energy saving, the cost reduce up to 50%.
Through a vaporizing humidifier you can save energy.
I When doors open, the air curtain blocks out exterior air and prevents dust or bugs from coming inside.
It is effective to save energy for blocking interior temperature humidity from exterior.

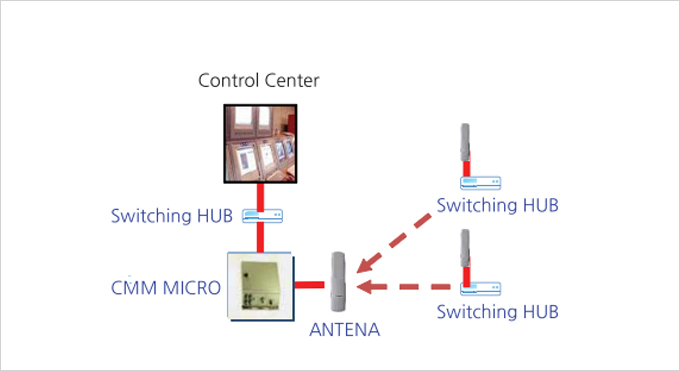

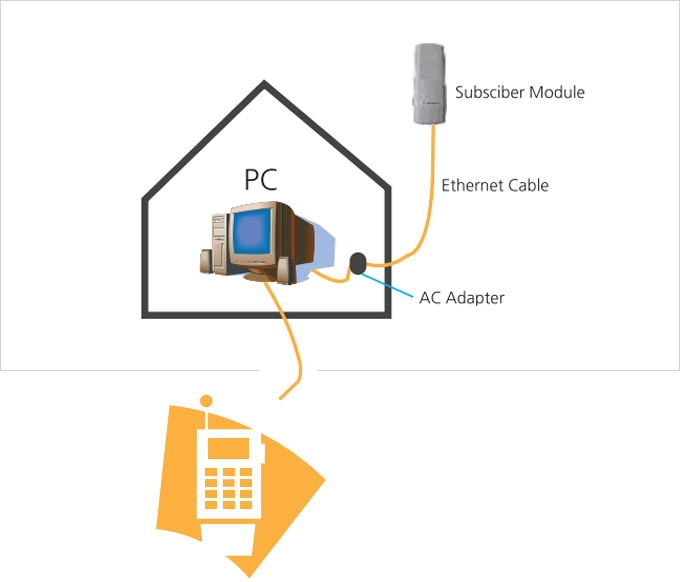

PC-set inside - checks temperature and humidity and transfers those data to control center.
I As the network is connected based on wireless, there is no problems of setting cable.
I When PC detect problems regarding the temperature and humidity, the data will be transfered to
manager's cell phone, which makes you control and solve the problem quickly and effectively.
